SKODA 110 L RALLYE

While waiting for a license from a manufacturer for my previous mod, I have started working on one of the last cars from my personal wish-list, a small green sedan from my childhood. The particular car was scrapped a long time ago, but the whole technical documentation is present in an owners manual and a repair book from Vincenc Baťa, which I got from my grandma.

Let me introduce the most common Czechoslovak car from the 70s, a basic rear-engined sedan with a swing axle.

Progress: started modeling a body according to the blueprints from the repair manual

Progress: added a few polygons to the front, added rims and defined physics. Front and rear axle geometry is precisely approximated according to technical blueprints and data from the repair manual (toe-in, caster, camber, inclination, scrub radius, arm lengths...). Aerodynamics is set to match a realistic top speed. Did some tests and the current version can be easily flipped on a roof. However, this is an expected behavior when using modern tires combined with an old swing axle and have found multiple videos of flipped cars IRL.

Also did some tests with a 80 and 120 hp rally engines and racing wheels because both stock and rally version are on the way. The rally version physics will need some more work as the 120hp version is too tail-happy.

Progress: modeled front window, added gaps between panels and started with a rear part.

Very nice, keep up the good work man

Nice preview, i can't wait to try it

Nice!!!

Thanks for support

Progress: cut side windows and minor shading adjustments. Fixed a center of gravity. The car is fun to drive, but AIs keep flipping on a roof.

Progress: modeled rear window + side grille + minor shading optimizations

Progress: modeled rear. Some shading fixes are needed.

Progress: reworked mudguards to fix their shading, identified last details of the grandmas 1972 car and fixed engine specification and weight according to it. It is less powerful but also lighter so it is still fun to drive. Modeled bottom of the car and defined visible suspension tubes. Fixed problems with AI using over-pressured (+0.2 kPa) rear tires (the LFS tires are too grippy for such old cars).

Awesome, great to see such a legendary CZ/SK car coming to life in LFS

Quote from Flame CZE :

Awesome, great to see such a legendary CZ/SK car coming to life in LFS

Thanks for the support At first, I was not sure, if this car is needed in the LFS after your perfect Erko mod (which is my favorite mod so far). But then I got a complete technical documentation and found out that I really need this car.

What do you think? Is it better to use engine specifications according to the SAE (39 kW) or according to the ČSN (35.3 kW)? Currently using the SAE and it is sharper then expected (and I like that ), but not sure which value is more realistic.

Beautiful! It ended very good, congrats.

Thanks

Progress: started modeling an interior (rear seats, windows and a roof). Adjusted aerodynamics. Started working on a historic 1150cc Group 1 rally version. Modeled rally rims. Created and tested a 100 hp racing engine according to contemporary rally specifications. The rally version is prone to lift-off over-steer but can keep up with XFGs on some slower rally-cross tracks, even with opened differential. However it will need some further tuning as a clutch can be burned easily.

Progress: Modeled front seats and started working on a dashboard and a steering wheel. Minor shading optimizations. Added plates and front indicators. The stock physics is done but the rally version keeps overheating.

Progress: created a steering wheel, an exhaust and a steering animation. Minor shading fixes. Started working on mappings.

Progress: optimized mappings into two 1024 x 1024 textures. Created light textures and 3D headlights with parabolic chrome. Created chassis, seats and a grille textures.

Progress: started drawing interior textures with ambient occlusion. Fixed the rear grille (mistakenly made too many holes). Minor shading fixes. Created a working dashboard.

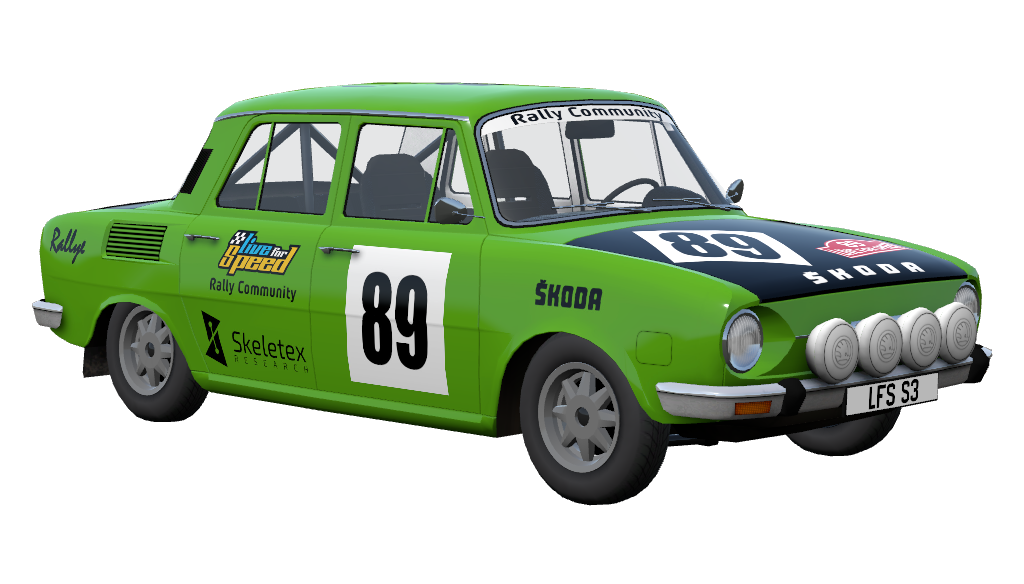

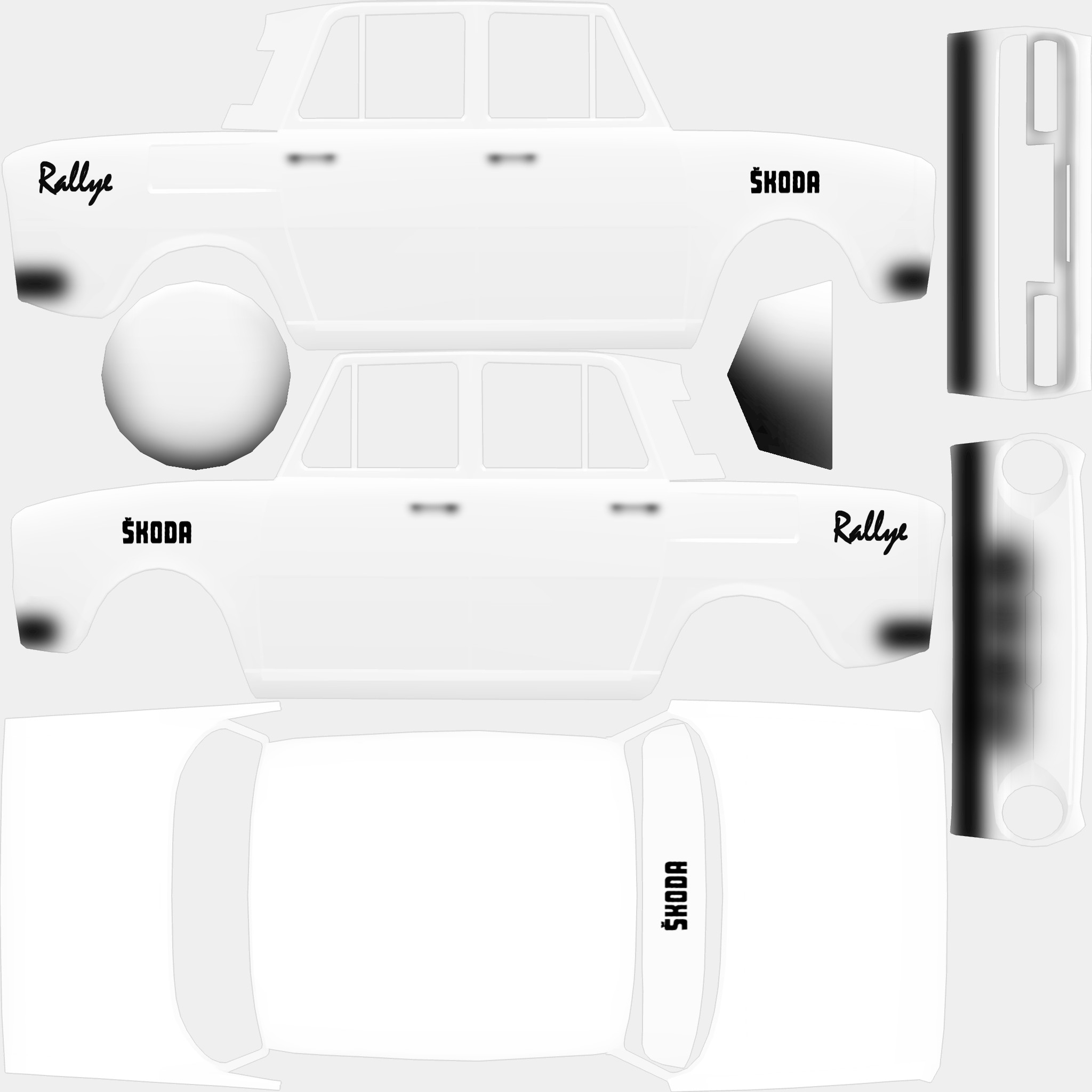

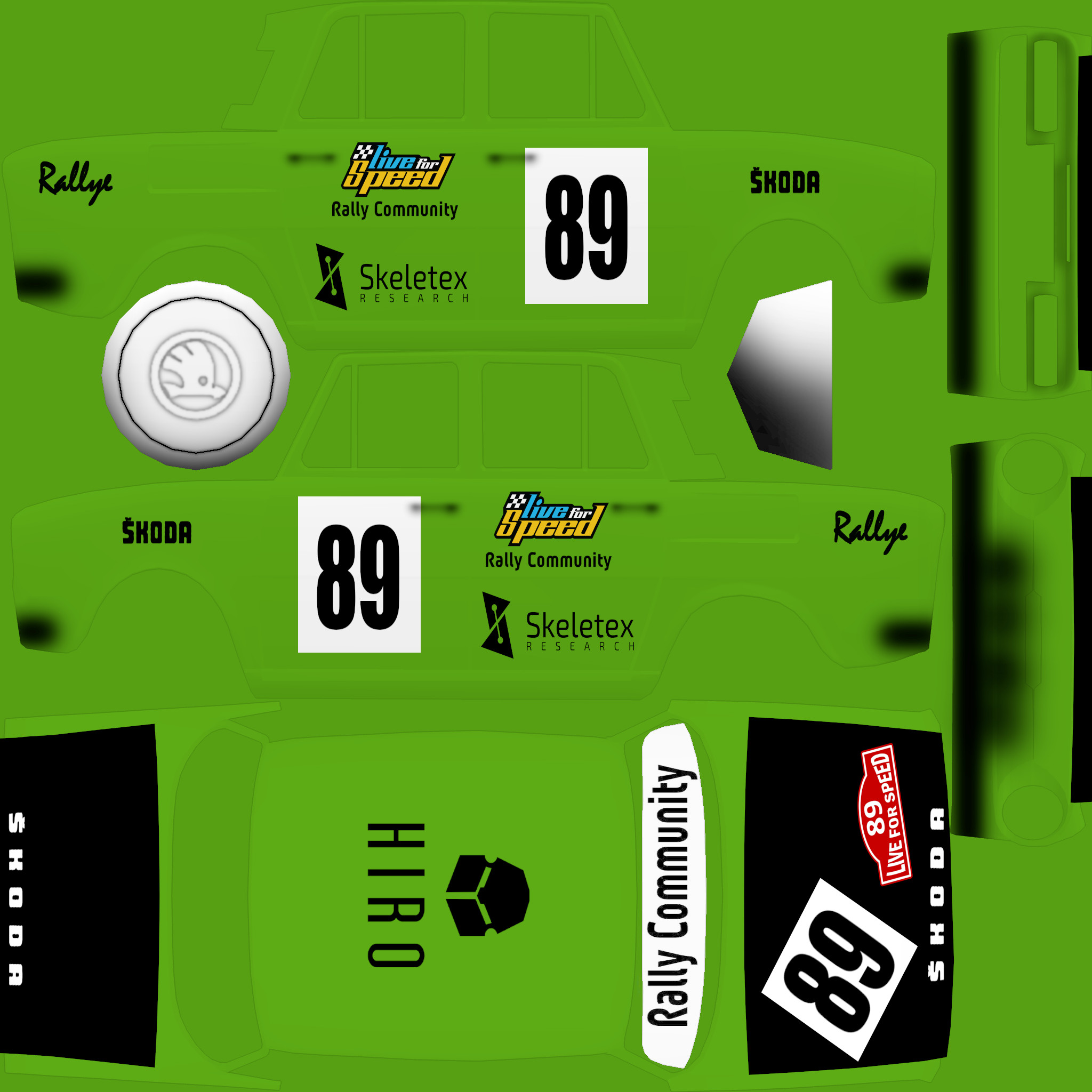

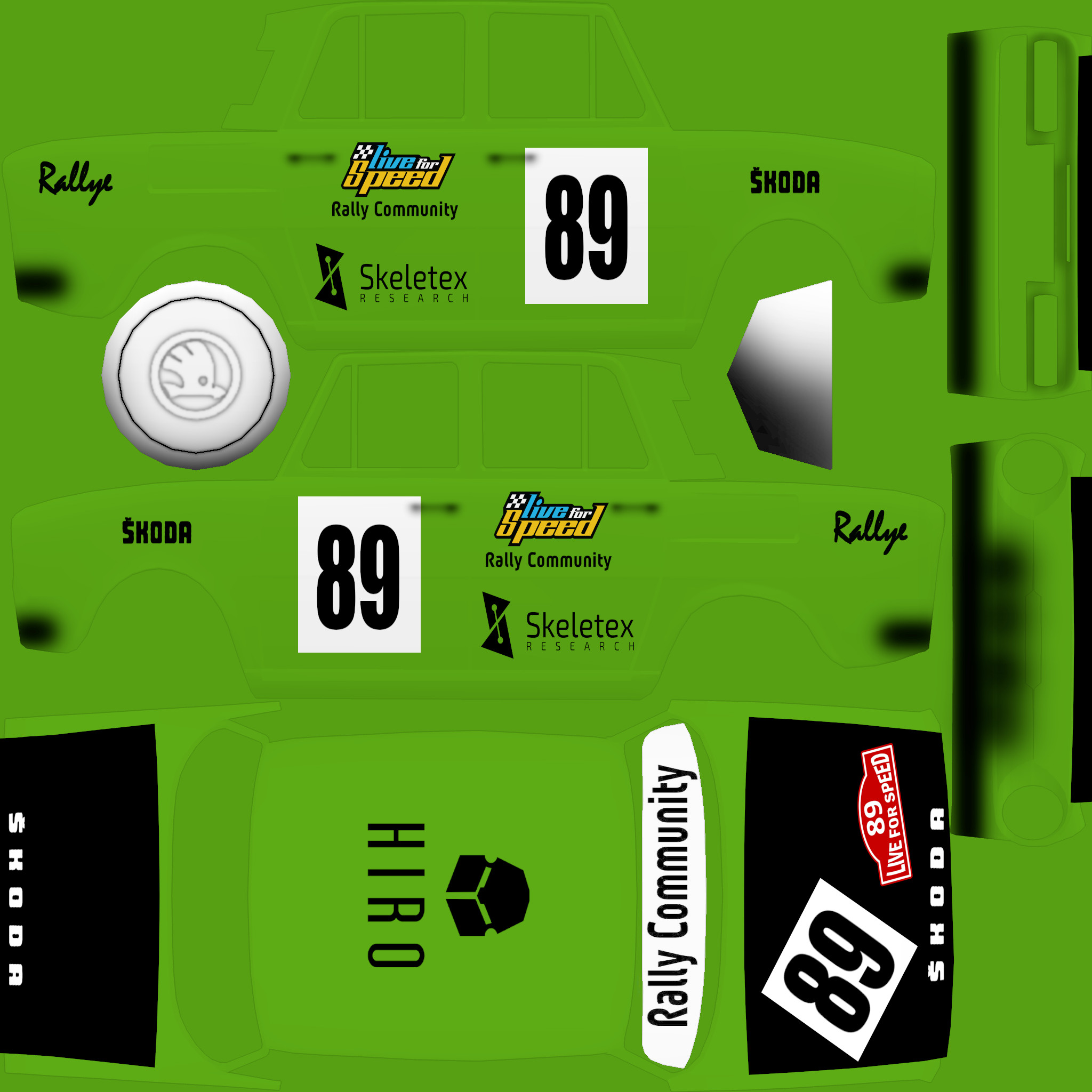

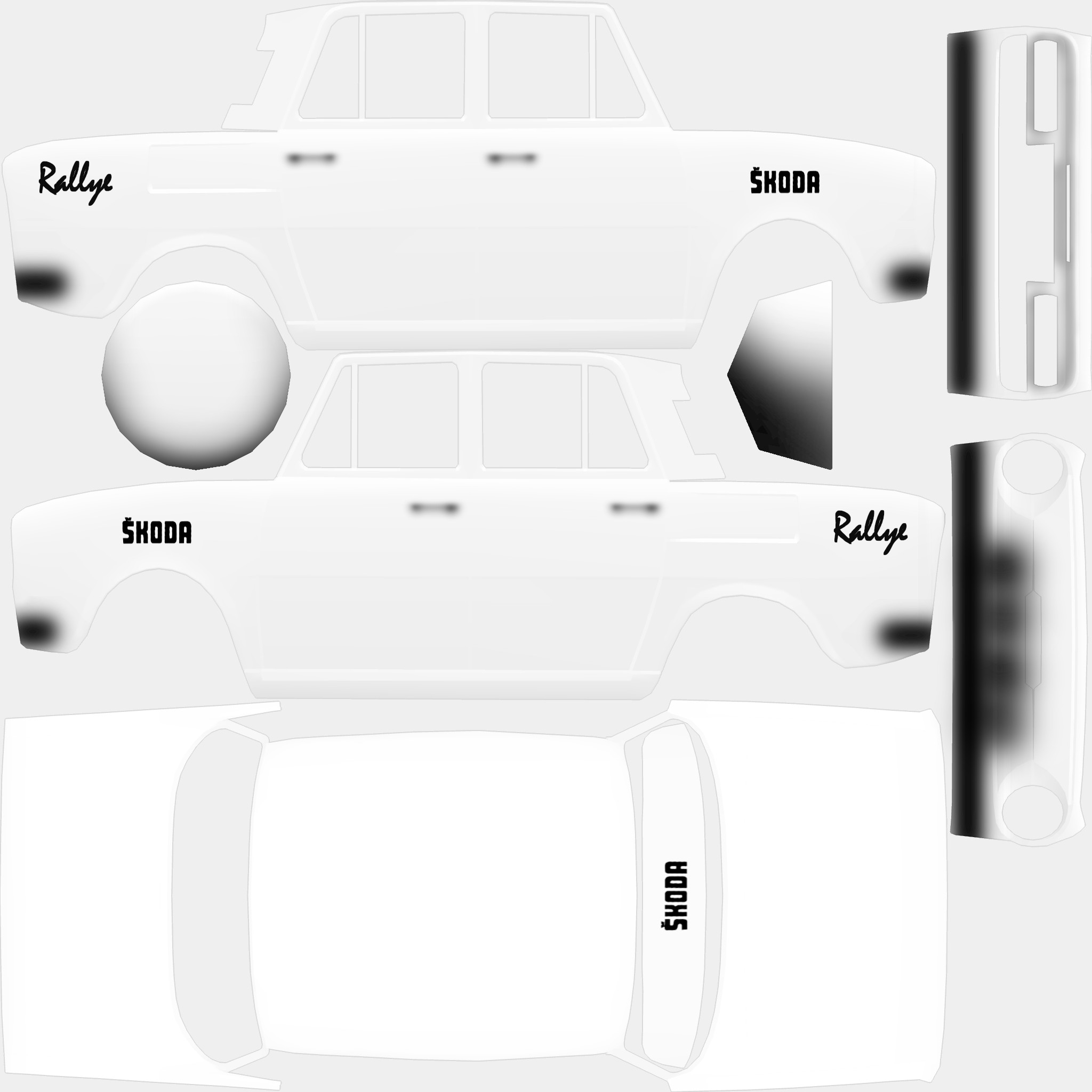

Progress: finished a stock model of a Škoda 110L - my first detailed replica. Added interior details with ambient occlusion, windshield wipers and logos. Created a skin support a default skin with shading and one rally sample skin for the future Škoda 110 L Rallye A2. Physics is made precisely according to the IRL documentation. Currently solving license with Škoda.

Good job! :]

Thanks

Progress: waiting for license from manufacturer. Reworked LOD 2 and 3. Started modelling racing parts for the 100 hp A2 rally version.

Your post #20 is my favorite. Your work looks absolutely brilliant..hm like always.
I was searching blueprints for Zaporozhets ZAZ 986 before, but i left it for future. But you made this, and it's awesome!
If it's public mod, I will definitely buy it on TC server for my cruising, earning money car and break the odo.
I hope everything with the license from the manufacturer goes as planned. (Crossed fingers)

Quote from ivo_drifta :

Your post #20 is my favorite. Your work looks absolutely brilliant..hm like always.
I was searching blueprints for Zaporozhets ZAZ 986 before, but i left it for future. But you made this, and it's awesome!
If it's public mod, I will definitely buy it on TC server for my cruising, earning money car and break the odo.
I hope everything with the license from the manufacturer goes as planned. (Crossed fingers)

Thanks for support Of course, both the stock and the rally version will be public as soon as it will gain the license from the manufacturer. If everything will go smoothly, the cars could be uploaded for review in a couple of weeks. However, in contrast to most of my previous mods, derivatives will not be allowed because of the license.

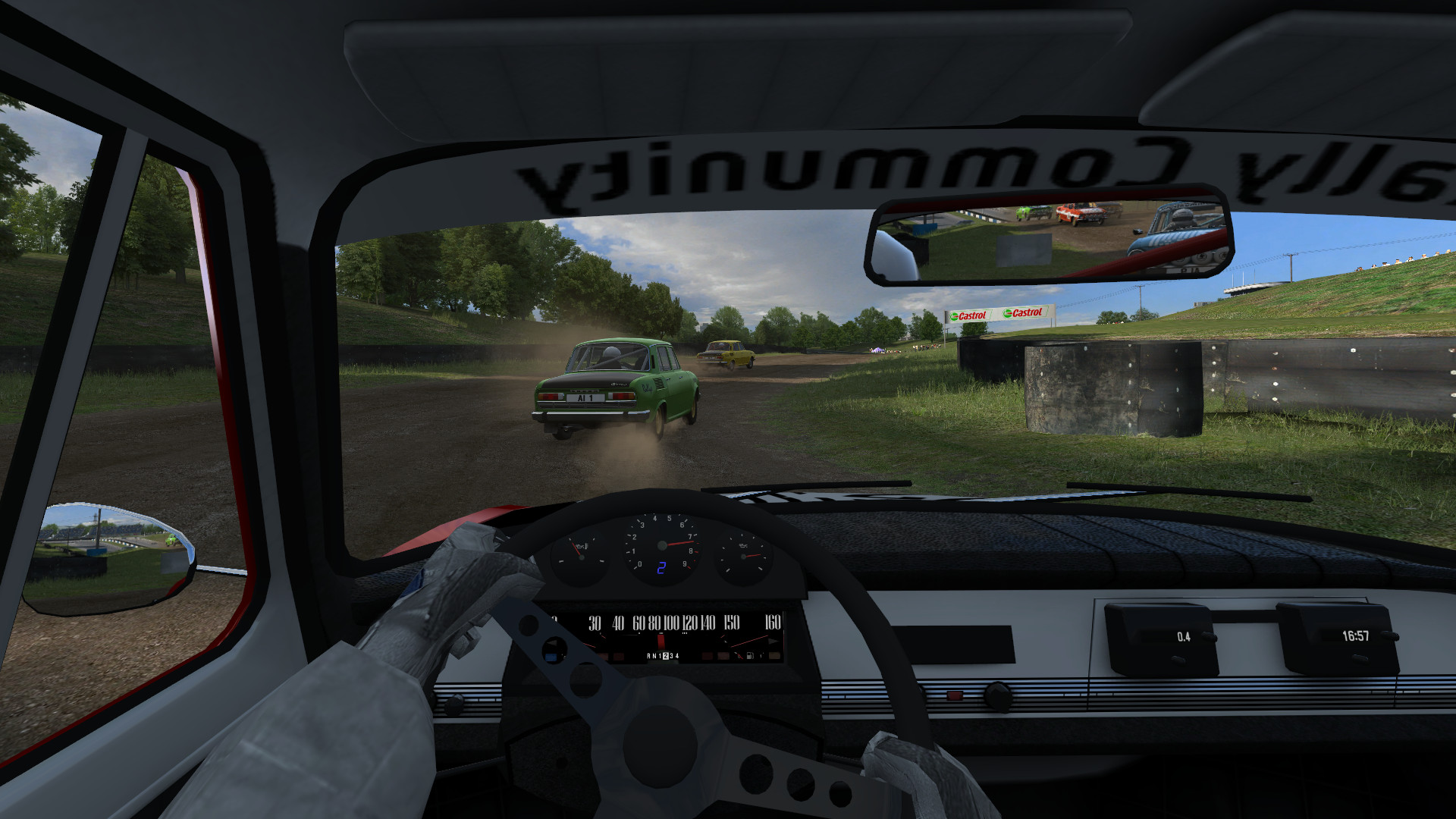

Progress: fixed the front lower arm (it was mistakenly shortened) and reworked damping of a stock setup according to videos. The car is more stable now and feels more realistic. Created a rally steering wheel and additional gauges according to FIA homologation archive. Updated shading of a ceiling and a roll-cage. Contacted a car museum for last missing technical data of the A2 rally version.

wow top job again stuchlo

Thanks

Progress: created more detailed stock rims. Minor shading fixes. Created racing seats for the rally version. Updated rally version setups. Set stock pressures for the stock version according to the manual (AI drivers are now forced to use knobbly tires to prevent rolling on the roof). Updated height of the center of gravity according to newly gained information. Added a skinnable external visor on the rally version windshield.

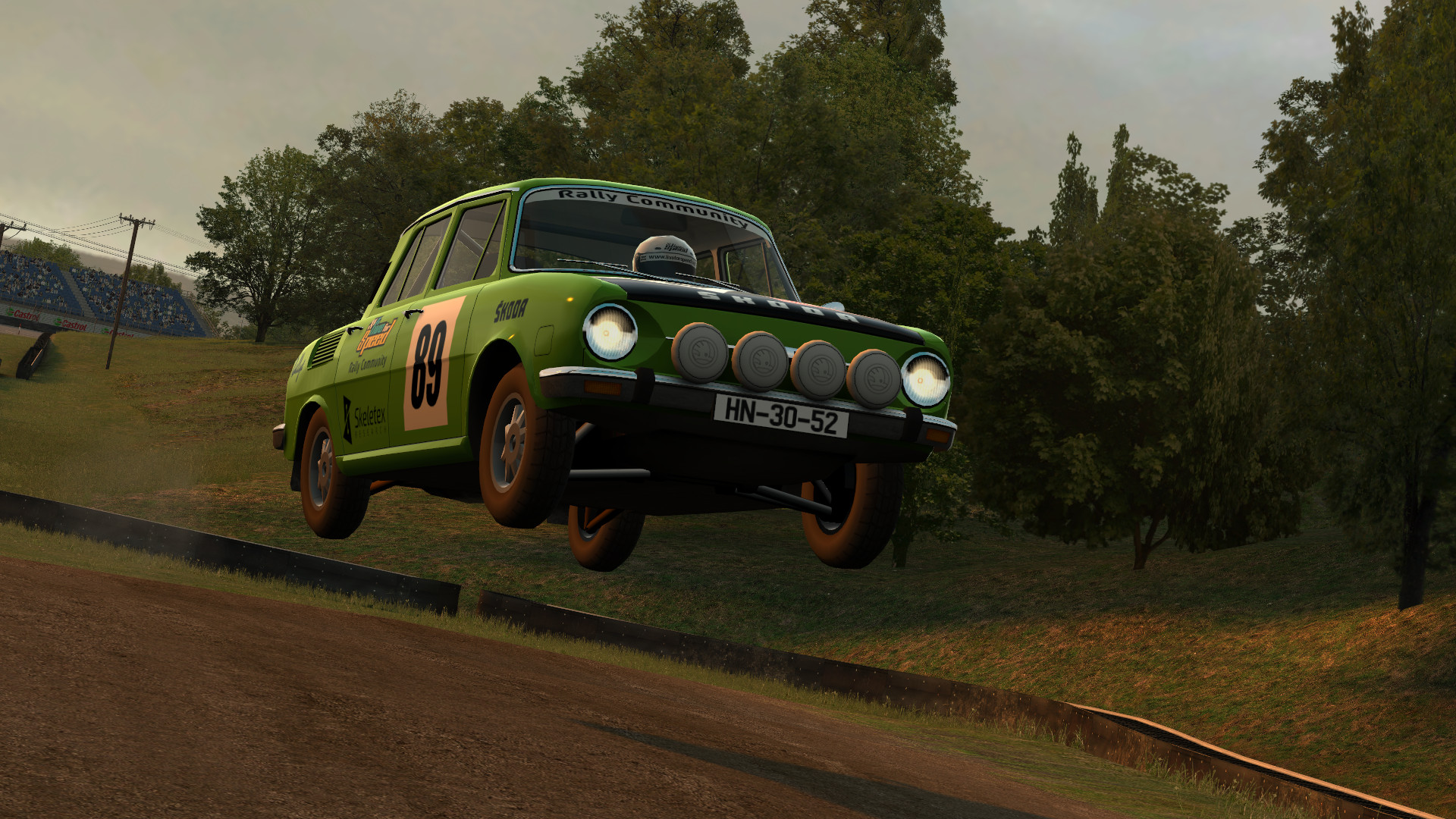

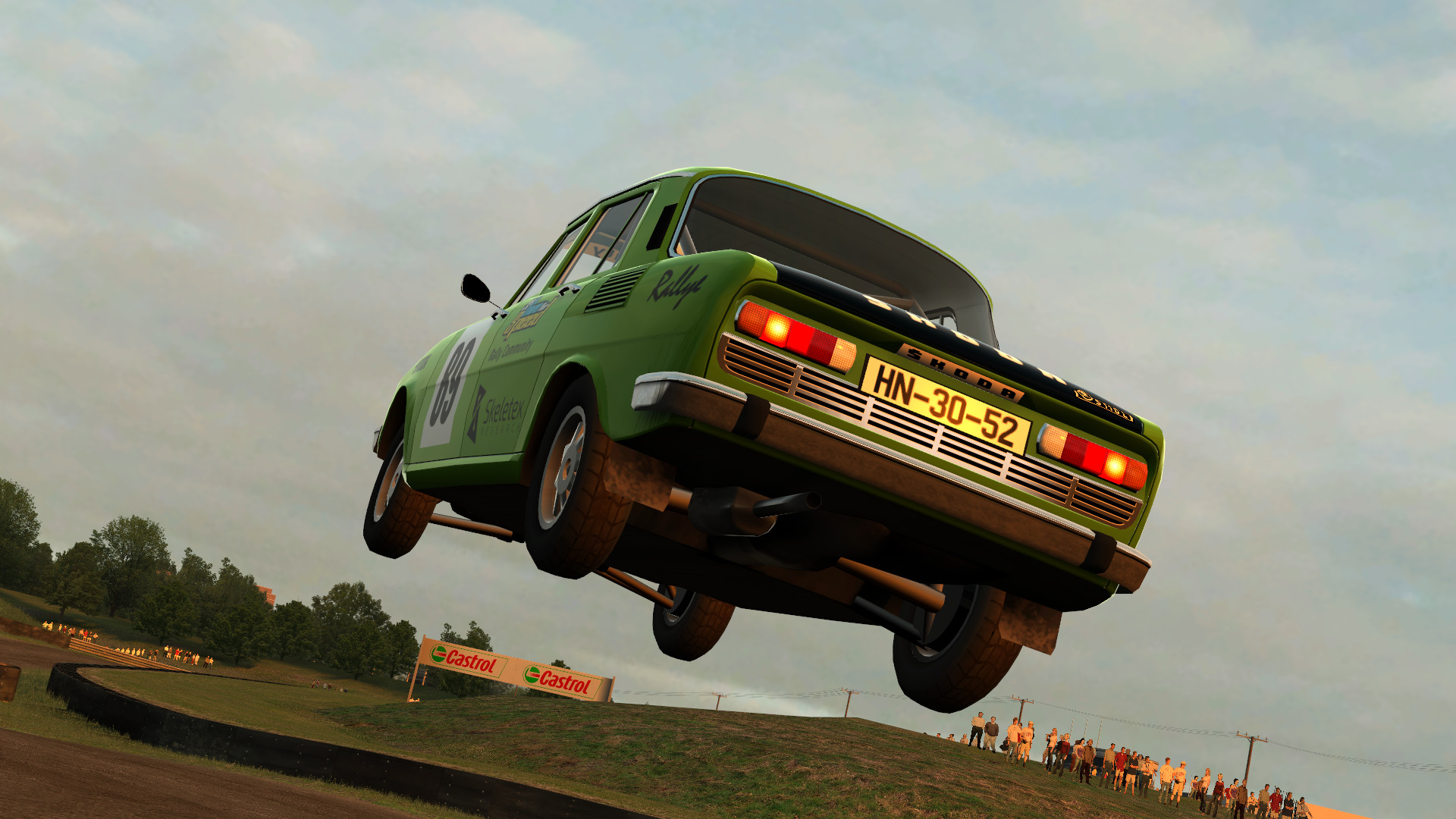

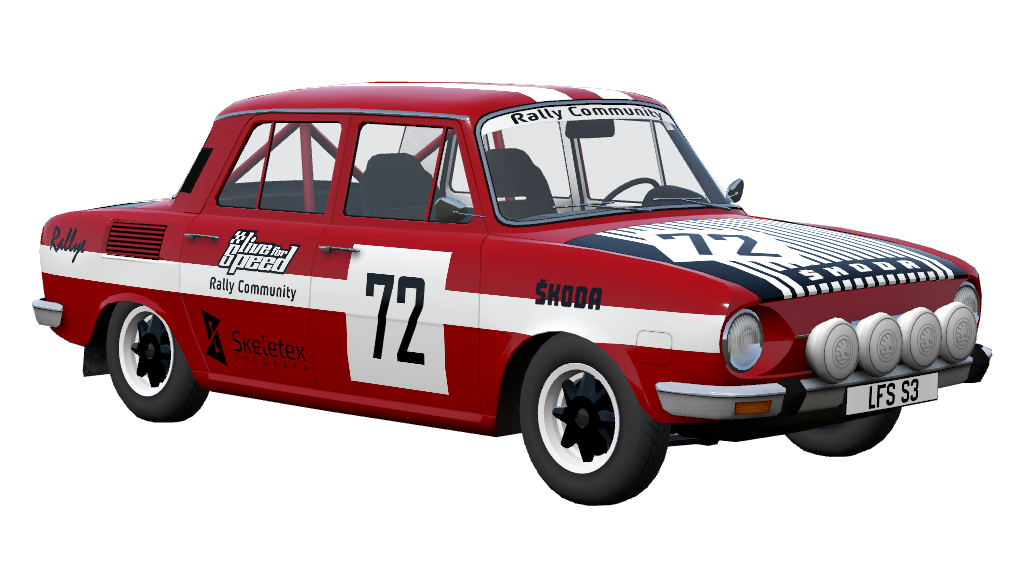

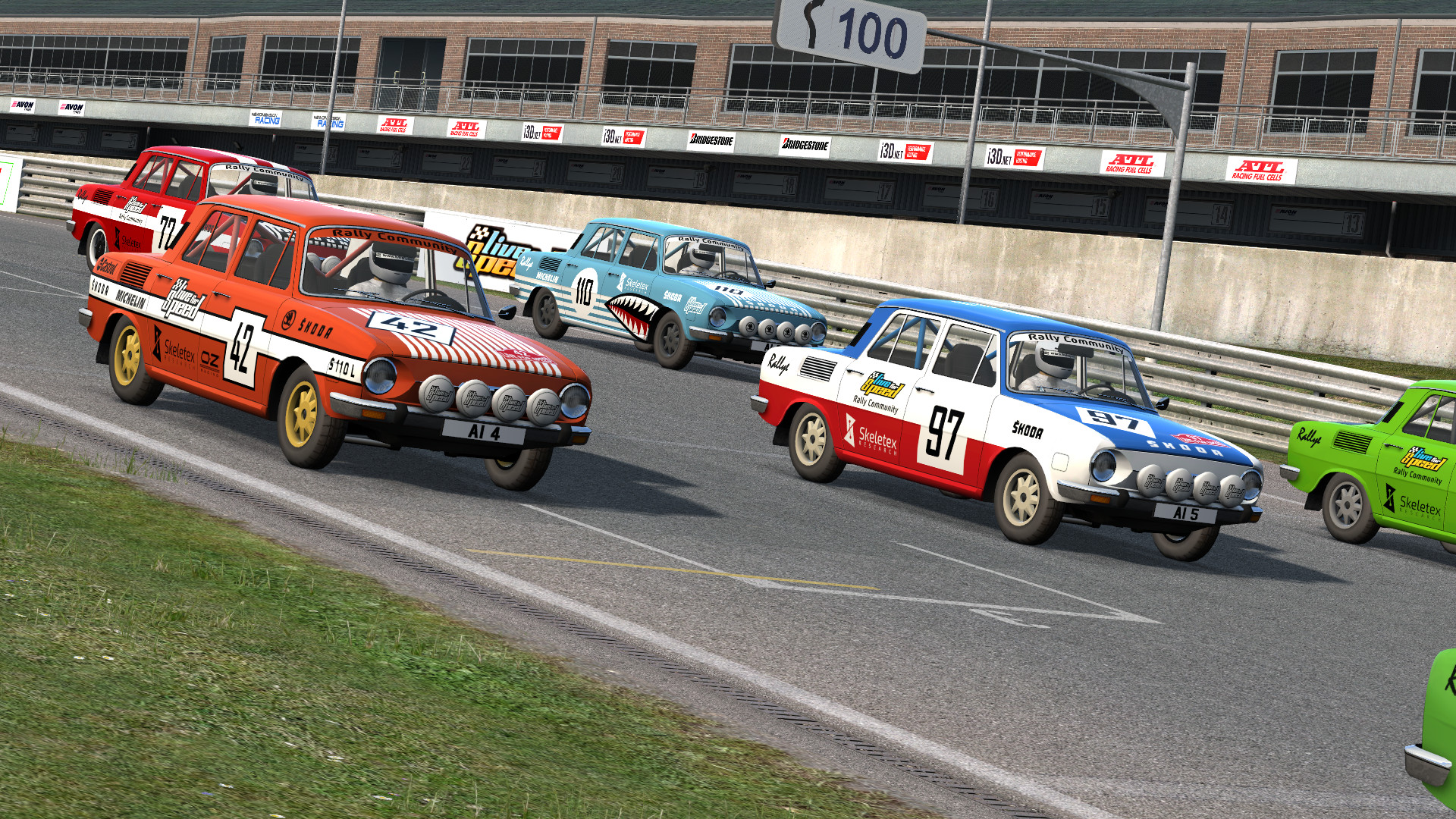

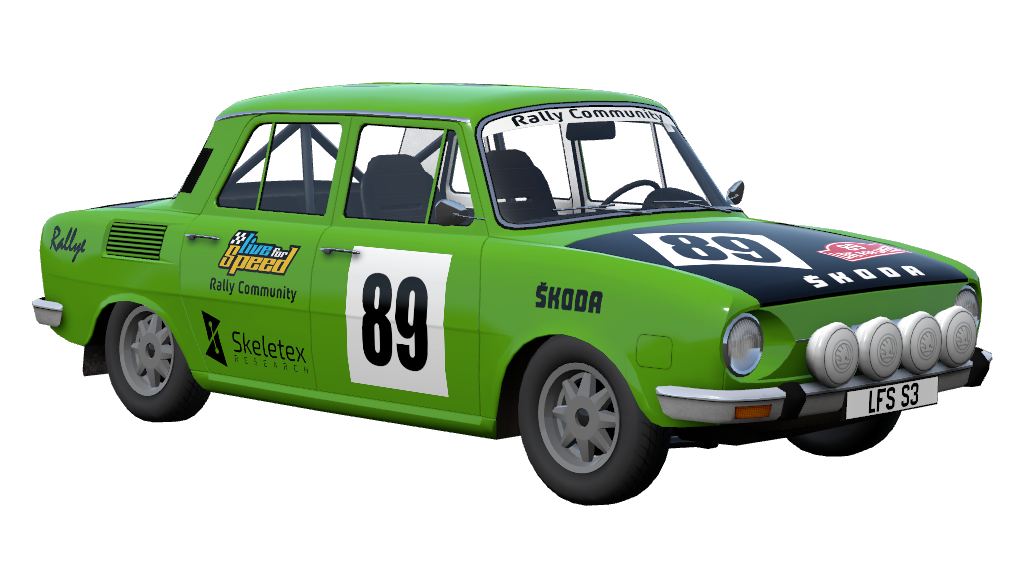

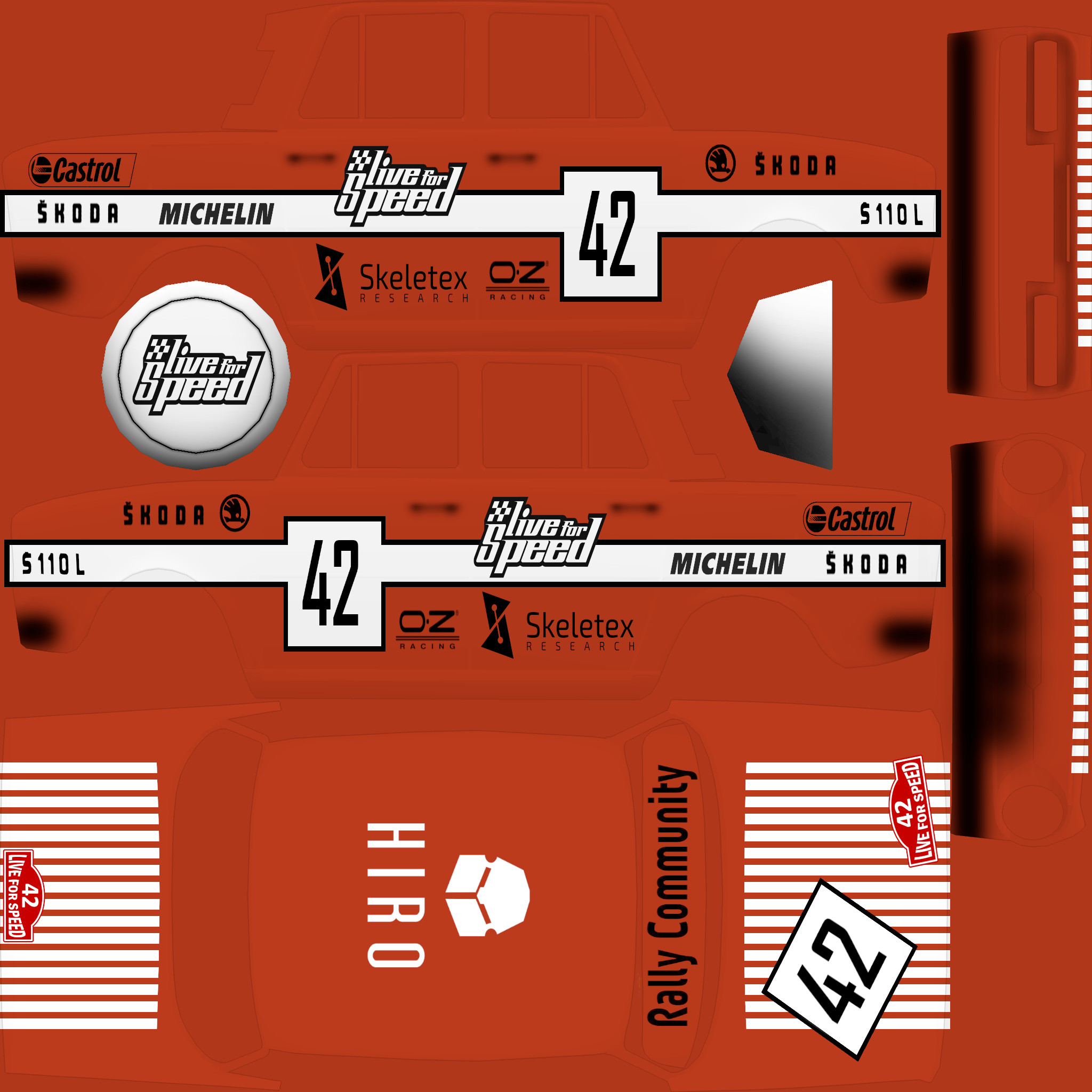

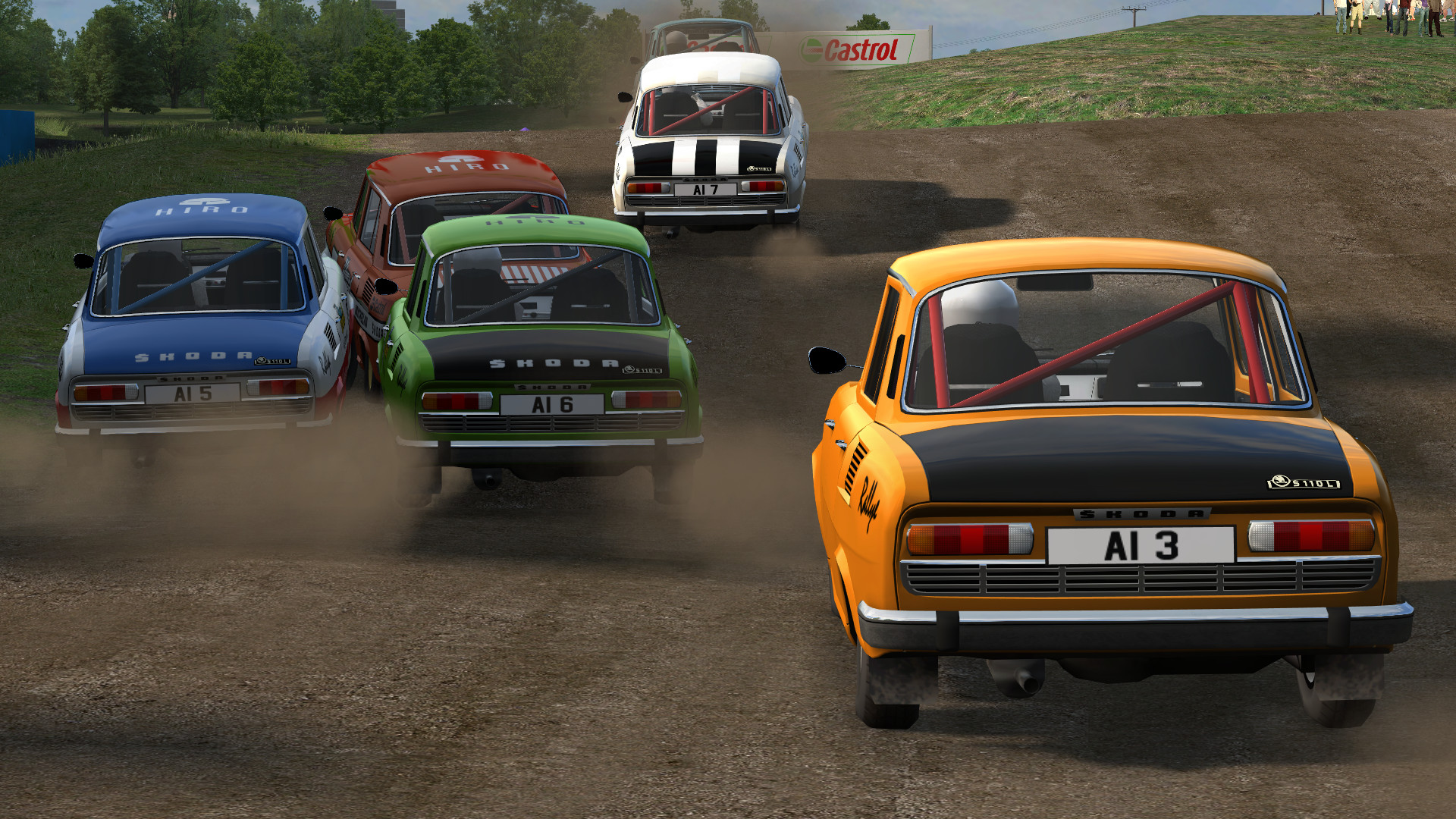

Progress: finished the rally interior. Minor shading fixes. Created racing skins. Fixed proportions of the front mask and aerodynamics of the both versions. Fixed max RPM of the stock engine according to the FIA homologation archive. The rally version is now capable to compete with the XFG on rallyecross tracks. Waiting for the final version of the licensing contract.

Great job!

Very nice car. Is there a chance of a smaller steering wheel that won't block the view?

Quote from seksen :

Very nice car. Is there a chance of a smaller steering wheel that won't block the view?

Unfortunately, back in the day cars had large steering wheels. It is a detailed replica and I would like to keep it as realistic as possible. I would suggest to create your custom view or to turn driver and steering wheel off

A very well-made mod and super fun to drive. Modelling and textures that are at the top of what LFS allows. Great sound too. IMHO one of the coolest LFS mods actually (Ok, there are many ).

Quote from stuchlo :

Unfortunately, back in the day cars had large steering wheels. It is a detailed replica and I would like to keep it as realistic as possible. I would suggest to create your custom view or to turn driver and steering wheel off

Thanks. Does the custom view work on the online server? Is it done with a mod editor?
Other than that, my current experiences include poor handling. I lowered it a little and stiffened the suspension, and it improved a little. I think the 5500 speed cutter can be made because it engages the cutter in fourth gear. It has a great first gear for its power.

Thanks everyone for the feedback

Quote from seksen :

Thanks. Does the custom view work on the online server? Is it done with a mod editor?

In game "options -> view" you can set your custom view for each vehicle. It can be used on most servers.

Quote from seksen :

Other than that, my current experiences include poor handling. I lowered it a little and stiffened the suspension, and it improved a little. I think the 5500 speed cutter can be made because it engages the cutter in fourth gear. It has a great first gear for its power.

It is a stock car, recreated according to IRL specification to be as realistic as possible. Default setups were tuned according to a repair manual and some stunt videos. The gear ratios are stock and 5000 max RPM are defined according to historic FIA homologation forms (homologation numbers 5312 and 1672).

For a faster driving I would suggest setups similar to the rally version with shorter gears and lower and stiffer suspension. If you create a nice racing setup, feel free to upload it to the setup section

Quote from seksen :

Other than that, my current experiences include poor handling. I lowered it a little and stiffened the suspension, and it improved a little.

Okay, so I have once more checked quality of the default setups and found out that I made a mistake. Stiffness and damping was previously tuned according to stunt videos, but now I have found the exact data in the manual (which I missed for some reason before). Now the stiffness, bump and rebound are computed exactly according to the real values and handling is slightly better (but still not ideal for racing ) Thanks for the feedback, it helped with debugging

Tomorrow we gonna bring this old thing for a spin in Fern Bay:



In case interested,feel free to join - full info: https://www.lfs.net/forum/thread/107304-327th-RTFR
Livestream by SimBroadcasts.tv starts 18:50 UTC (link in info thread).
Attached also RTFR promo skin,in case someone likes to add more colors to this car.

Livestream link for tonight's stream featuring this mod. Thanks for the great work!

Cool car to look at, a lot of detail and textures are really well made. Wheels could be made up to par with the rest of the model though

The main issue i have with this car is the driveability, i do not know if your rear suspension type is the best way to replicate the suspension setup that the real car has, during compression it seems like the camber changes too much. Certainly goes the right way as the lower it goes the more negative it should be but dunno, it doesn't look as natural when you drop the car a few times in pit menu Open diff is also propably the worst thing you can put on this car as it makes many things way more unpredictable such as getting one tyre fire out of exits in turns and under braking if you happen to turn in it becomes a twitchy mess that needs constant sawing with the wheel to stay under control. Those things cause the car to run out of optimal tyre temps so fast that these issues multiply. But yeah, i've no clue if it is the best way to replicate the original.

I was told the car didn't really have any other differentials and that much i can understand why it is limited to open diff only, maybe in the future if its possible to limit differentials into other types you could try viscous diff instead which is sort of an open diff with preload. It retains many of the charasteristics of the open diff but with the preload it keeps at least some power on the tyre with grip so you actually dont light up the inner tyre every time you want to make a turn

Lastly, the hitbox LOD causes issues. Currently it has an angled front and rear with the front being lower than the rear of the hitbox, causing any type of front to rear contact to lift the front car up a bit and when you do this online the cars desync a bit and can cause glitchy hits. I don't know if it can be seen on the vid above but i had one incident where i only barely touched another cars bumper and was sent into a 360 spin. Bumpdrafting was also of course, out of the question and i am willing to bet you could bumpdraft these in real life with absolutely no worry at all Flat surface on both rear and front up to the bumper level would be optimal solution for this.

Thanks for the feedback

Quote from nikopdr :

The main issue i have with this car is the driveability

Yes, I know that the Škoda 110 L Rallye mod is difficult to drive. In fact, I was amazed how fast were participants of the Rony's TFR event . When recreating a real car, there is always a compromise between a good handling and realistic physics. Personally, I prefer realistic and historically accurate mods over "good to drive" ones. I have tried to recreate a realistic feel of an early 70s rallying. And driving a historic race-car is difficult Because of the Cold War, Czechoslovak manufacturers had to use simpler solutions. This is why it has a swing axle and an opened differential only. Despite this handicap, the car was better at rallying than more powerful competitors (which usually used beam axles back in the day) and was popular even in GB. Other historic cars usually used beam axles, which are not supported in the LFS and therefore an independent trailing-arm suspension is used instead. The independent trailing arm is much easier to handle than both beam and swing axle (but it is not realistic). This is why this mod is not easy to drive in a comparison with other historic mods.

I did not drive the car IRL, but have followed the technical specification closely. The only thing, which cannot be recreated in the current LFS version is the correct FF. The car has a worm-and-roller steering, which has a much less self-centering effect (despite the caster angle). I will try to lend an IRL car in the future and approximate the FF according to it.

Quote from nikopdr :

Lastly, the hitbox LOD causes issues.

Thanks, I will try to tune the LOD3 to cause less multiplayer problems in the in the future :)Also I will add a second mirror for a better visibility. Unfortunately, it will take some time, because currently I am working on some models and some changes will have to be reviewed by the manufacturer again.

Current TODO list:

• optimize clocks

• fix shading of a damaged plates

• improve engine sound

• add a second mirror

• lend an IRL car and approximate a more accurate FF

• try to find a safer collision model

• more detailed wheels


Outstanding mod, thanks, stuchlo!

The fact the car tends to slide a bit and has to be counter-steered actually contributes to the fun, IMO

Great follow up!
The car will be featured next Monday 22.15 CET at wee.cesav.es
Registration before 21.30 CET same day!
Everybody registering is welcome!

Quote from nikopdr :

Cool car to look at, a lot of detail and textures are really well made. Wheels...

Hello, finally I had some time for an update. The Škoda 110 L Rallye LOD3 is updated according to your feedback and collisions should be much safer now. Moreover, the manufacturer approved an additional configuration with both side mirrors for safer racing

I got some feedback, that Škoda 110 L Rallye is not used in online events, because of tire overheating issues linked to open differential. Therefore I did another round of research, if it is realistic to allow LSD. Unfortunately, it looks like the car is not allowed to use a LSD even in current "historic" rally events and therefore I cannot allow it.

On the other hand I made faster default setups, translucent sunshield, and more realistic fuel tank and engine and more robust front axle. Specs did not change, only revs are more responsive (as it should in a proper race car). This should make tire management easier.

Tnx man. I assure you that your mod will be used at some point in our AA Mod shakedown event.
