Posted Yesterday, 11:40 PM
Salve a tutti,

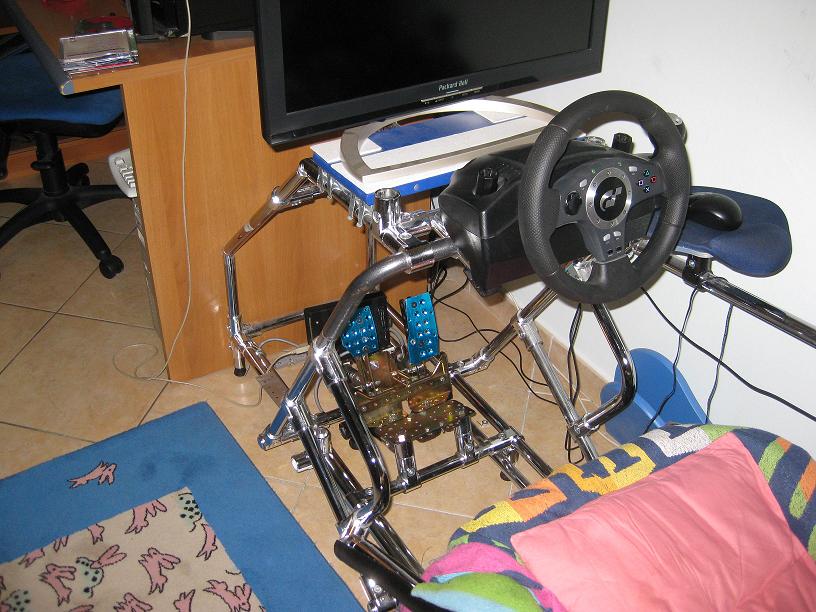

Vi posto le foto della mia ultima pedaliera autocostruita.
Uso sensori di hall con calamita.
La pedaliera e' completamente regolabile sia come corsa che come forza sui pedali.
Il freno ha una molla e un tampone elastico che agisce nella parte finale della corsa per simulare un vero pedale freno.


saluti,
Tova

Hello everyone,
We post the photos of my latest self-built pedals.
Use with magnetic Hall sensors.
The pedals and 'fully adjustable both as a race as a force on the pedals.
The brake has a spring and an elastic buffer that acts at the end of the race to simulate a real brake pedal.

Translated by gooooooogle.

Thank you very much for translation !!
sorry but I wrong the language

Looks pretty strong and surely shiny as far I can see :P


Good work!!

Nice nice nice!!! Clutch pedal?

Quote from SouvlakiTheBest :

Nice nice nice!!! Clutch pedal?

I don't made it because I don't have a H-shifter but is possible make it in the same pedals assy.

ciao
Tova

Very good job dude keep up the good and quality job that you do!

Some modification at the pedals:
1) load cell
2) new position of the hall sensor
3) change magnet with hard-disk one
4) Leo-bodnair load-cell

ciao
Tova

really nice. Did you use a real racecar pedal box to build this? All those metal parts look so professional

Nice work

Sweet, great job

<3 <3 <3 <3 <3 <3 way nicer than my DIY approach

that looks like a mission to make but looks good, Keep building these pedals and one day you will even have ur own h-pattern and be making your own clutch too.
